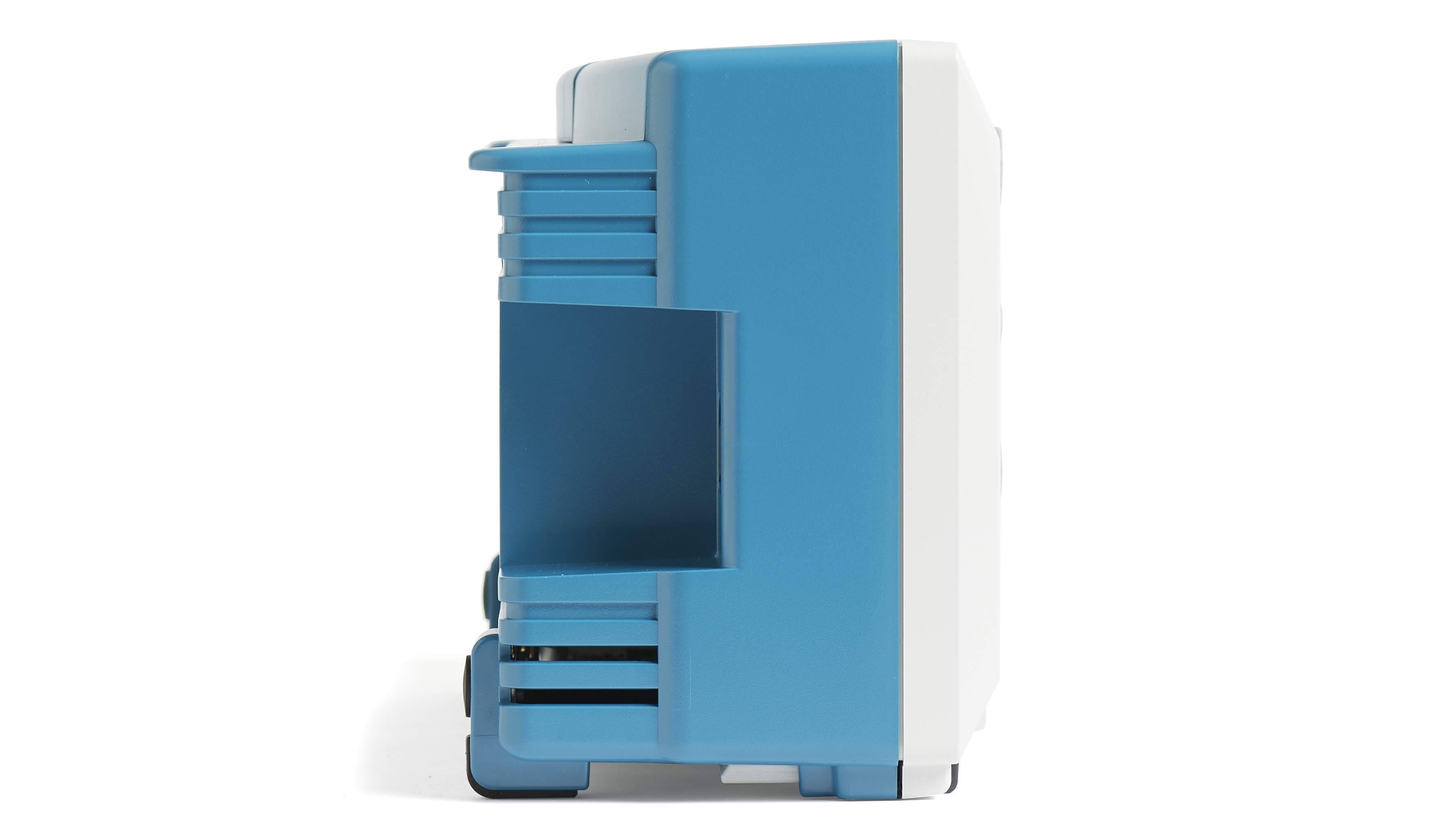

TBS1052C Oscilloscope: 50 MHz, 2 Analog Channels
The TBS1052C, 50 MHz oscilloscope, provides 2 analog channels, a sample rate of 1 GS/s, and 20k 点 points of record length.
- Analog Bandwidth50 MHz
- Sample Rate1 GS/s
- Record Length20k 点
Base Price:
US $653
1-year standard warranty included
Calibration certificate documenting traceability included
Specifications
| Model Overview | |
| Bandwidth |
TBS1052C: 50 MHz TBS1052C-EDU: 50 MHz TBS1072C: 70 MHz TBS1102C: 100 MHz TBS1202C: 200 MHz |
| Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 20 K points |
| Vertical System - Analog Channels | |
| Vertical Resolution | 8 bits |
| Input Sensitivity Range | 1 mV/div to 10 V/div max. in 1-2-5 sequence with probe attenuation set to 1X |
| DC Gain Accuracy | ±3.0% step gain, derated at 0.1%/°C above 30°C |
| Maximum Input Voltage | 300 VRMS, Installation Category II; derate above 4 MHz at 20 dB per decade to 200 MHz |
| Offset Range |
1 mV/div to 50 mV/div: ±1 V 100 mV/div to 500 mV/div: ±10 V 1 V/div to 5 V/div: ±100 V |
| Bandwidth Limit | 20 MHz typical |
| Input Coupling | DC, AC |
| Input Impedance | 1 MΩ ±2% in parallel with 14 pF ±2 pF |
| Vertical Zoom | Vertically expand or compress a live or stopped waveform |
| Acquisition Modes | |
| Sample | Acquire sampled values |
| Peak Detect | Captures glitches as narrow as 4 ns at all sweep speeds |
| Average | From 2 to 256 waveforms included in average |
| Hi-Resolution | Averages multiple samples of one acquisition interval into one waveform point |
| Roll | Scrolls waveforms right to left across the screen at sweep speeds slower than or equal to 40 ms/div |
| Horizontal System - Analog Channels | |
| Timebase Accuracy | ±25 × 10-6 over any >1 ms interval |
| Timebase Range | 2 ns/div to 100 sec/div in a 1-2-4 sequence |
| Horizontal Zoom | Horizontally expand or compress a live or stopped waveform |
| Deskew Range | ±100 ns |
| Trigger System | |
| External Trigger Input | Included on all models |
| Trigger Modes | Auto, Normal, Single Sequence |
| Edge Trigger | Positive or negative slope on any channel. Coupling includes DC, HF reject, LF reject, and noise reject |
| Pulse Width Trigger | Trigger on width of positive or negative pulses that are >, <, =, or ≠ a specified period of time |
| Runt Trigger | Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again |
| Trigger Source | CH1, CH2, AUX IN, AC Line |
| Trigger Coupling | DC, Noise Reject, High Frequency Reject, Low Frequency Reject |
| Trigger Signal Frequency Readout | Provides a frequency readout of the trigger source up to instrument bandwidth |
| Waveform Measurements | |
| Cursors | Time, Amplitude, Screen |
| Automated Measurements |
32 measurements, with up to six displayed on-screen at one time: Period, Frequency, Rise Time, Fall Time, Positive Duty Cycle, Negative Duty Cycle, Positive Pulse Width, Negative Pulse Width, Burst Width, Phase, Positive Overshoot, Negative Overshoot, Peak to Peak, Amplitude, High, Low, Max, Min, Mean, Cycle Mean, RMS, Cycle RMS, Positive Pulse Count, Negative Pulse Count, Rising Edge Count, Falling Edge Count, Area, Cycle Area, Delay FR, Delay FF, Delay RF, Delay RR |
| Gating | Screen, between waveform cursors, or full record length |
| Waveform Math | |
| Arithmetic | Add, Subtract, and Multiply waveforms |
| FFT | Spectral magnitude. FFT vertical scale can be Linear RMS or dBV RMS. FFT window options include Rectangular, Hamming, Hanning, or Blackman-Harris |
| Display System | |
| Display Type | 7-inch TFT Color Display |
| Display Resolution | 800 horizontal by 480 vertical displayed pixels, WVGA |
| Waveform Styles | Vectors, Variable persistence, Infinite persistence |
| Format | YT and XY |
| Input / Output Ports | |
| USB 2.0 Host Port | Supports USB mass storage devices |

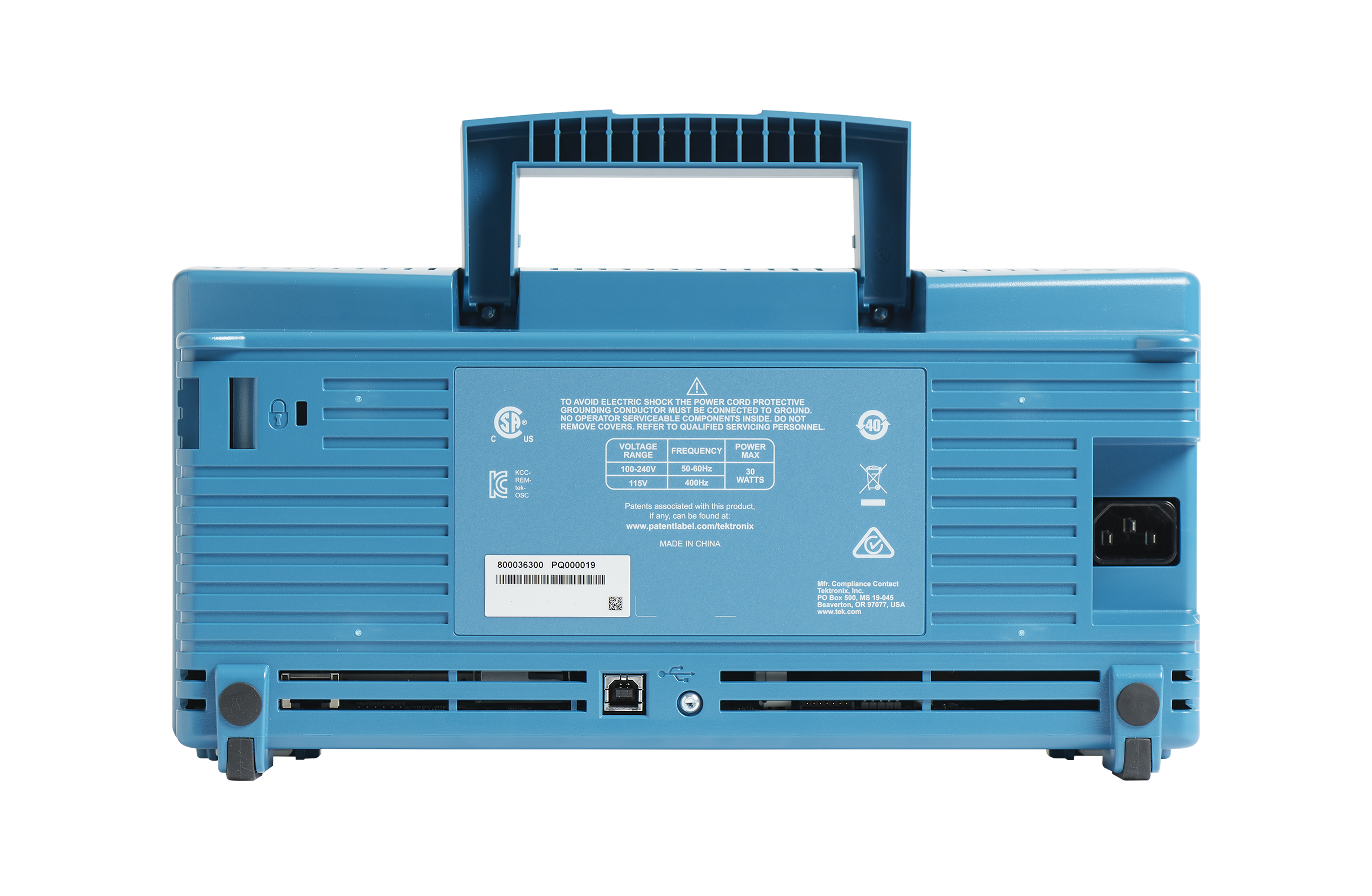

| USB 2.0 Device Port | Rear-panel connector allows communication/control through USBTMC or GPIB with TEK-USB-488 |
| Probe Compensator | |
| Amplitude | 5 V |
| Frequency | 1 kHz |
| Kensington Style Lock | Rear-panel security slot connects to standard Kensington style lock |
| Power Source | |
| Power Source | 100 to 240 VAC RMS ±10% |
| Power Source Frequency |
45 Hz to 65 Hz, 100 to 240 V 360 Hz to 440 Hz, 100 to 132 V |
| Power Consumption | 30 W maximum |
| Physical Characteristics | |
| Dimensions |
Height: 154.95 mm / 6.1 in Width: 325.12 mm / 12.8 in Depth: 106.68 mm / 4.2 in |
| Shipping Dimensions |
Height: 266.7 mm / 10.5 in Width: 476.2 mm / 18.75 in Depth: 228.6 mm / 9.0 in |
| Weight |
Instrument only: 1.979 kg / 4.36 lb Instrument with accessories: 2.2 kg / 4.9 lb |
| Cooling Clearance | 50 mm / 2 in required on left side, right side, and rear of instrument |
| Environmental and Safety | |
| Operating Temperature | 0°C to +50°C |
| Non-operating Temperature | -30°C to +71°C |
| Operating Humidity | 5% to 90% RH up to +30°C; 5% to 60% RH above +30°C up to +50°C, non-condensing |
| Non-operating Humidity | 5% to 90% RH up to +30°C; 5% to 60% RH above +30°C up to +60°C, non-condensing |
| Operating Altitude | Up to 3,000 m / 9,842 ft |
| Non-operating Altitude | Up to 12,000 m / 39,370 ft |
| Regulatory | |
| Electromagnetic Compatibility | EC Council Directive 2014/30/EU |
| Safety Standards | UL61010-1, UL61010-2-030, CAN/CSA-C22.2 No. 61010.1, CAN/CSA-C22.2 No. 61010-2:030, EN61010-1, EN61010-2-030 |
| Safety Compliance | Complies with the Low Voltage Directive 2014/35/EU for Product Safety |
-
